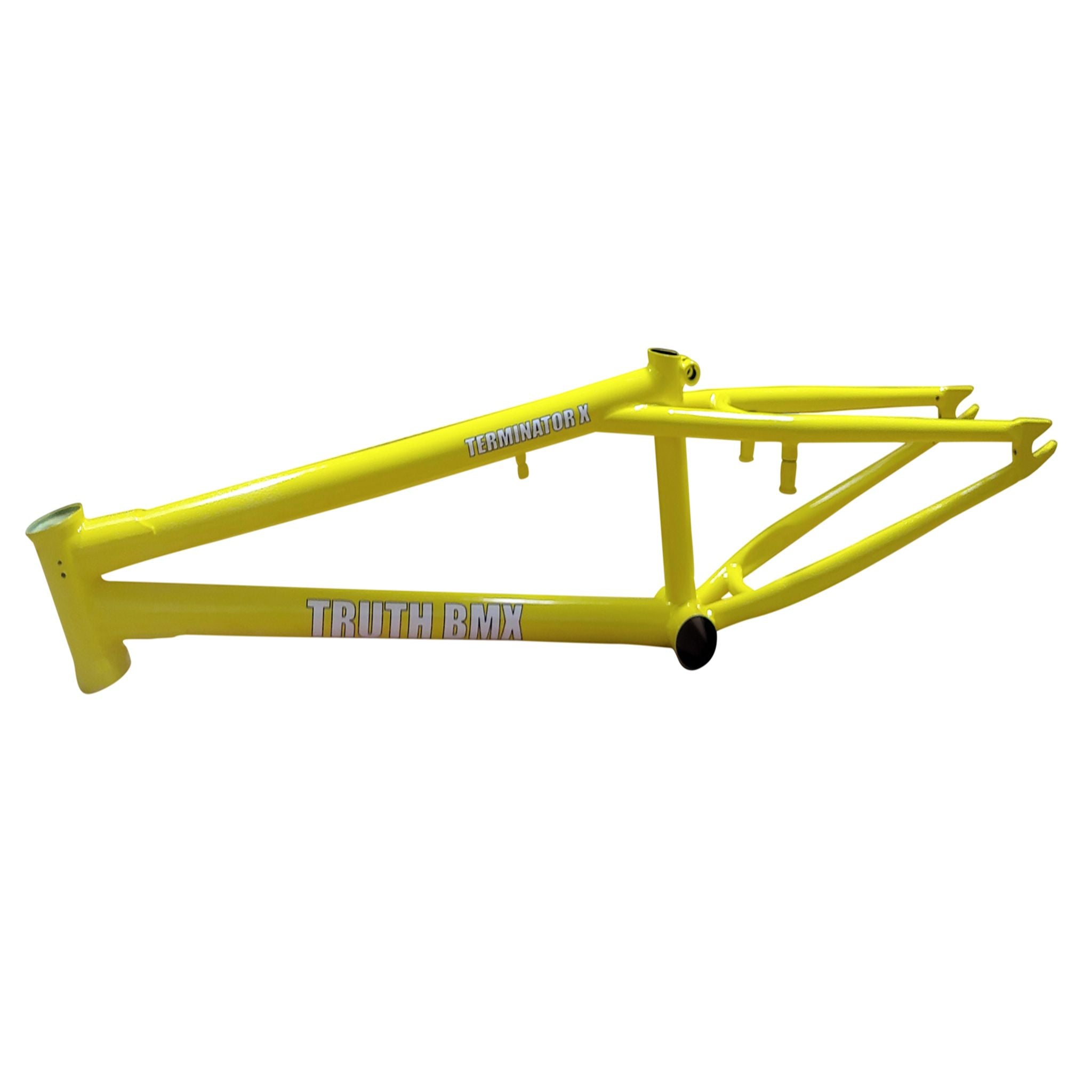

The Truth Terminator X flatland frame is one of the advanced flatland bmx frame ever produced. All was made possible by using the latest and best manufacturing equipment and materials available.
Terminator X frames are hand man out of 100% 4130 chromoly. CNC integrated 45/45 head tube with gyro tabs, top and down tube gussets for additional strength.
CNC Spanish BB shell, integrated seat post clamp ,seat stay located bosses for removable U-brake mount.
Ultra Tapered rear tri at dropouts, Room for large 2.50" tire, 14 mm dropouts with integrated chain tensioners, 7 MM thick.
Truth took a few steps to insure the Terminator X was the strongest flatland frame in the world. We subjected it to Bmx Racing EU testing on frame machine.
Both pedaling and Horizontal test 100,000 cycles, Vertical 50,000 cycles. Terminator X Passed with no breakage or visible cracks.
The test simulate 10 years riding time on frame.
Top Tube Length 19.0",19.5", 20.5"
Rear End length 13.25" center to center
Head tube Angle. 74.5°
Seat post Angle 70 °
BB Height 11.60"
Stand over 7"
Weight 4.08 pounds
Meets or exceeds ENBMX Racing standards.
To purchase, we require a 50% deposit to begin. The balance is due then when your frame ready to ship. Current production time is approximately 125 days excluding weekends and holidays.
